Coil Laser Cutting Machine Product Line

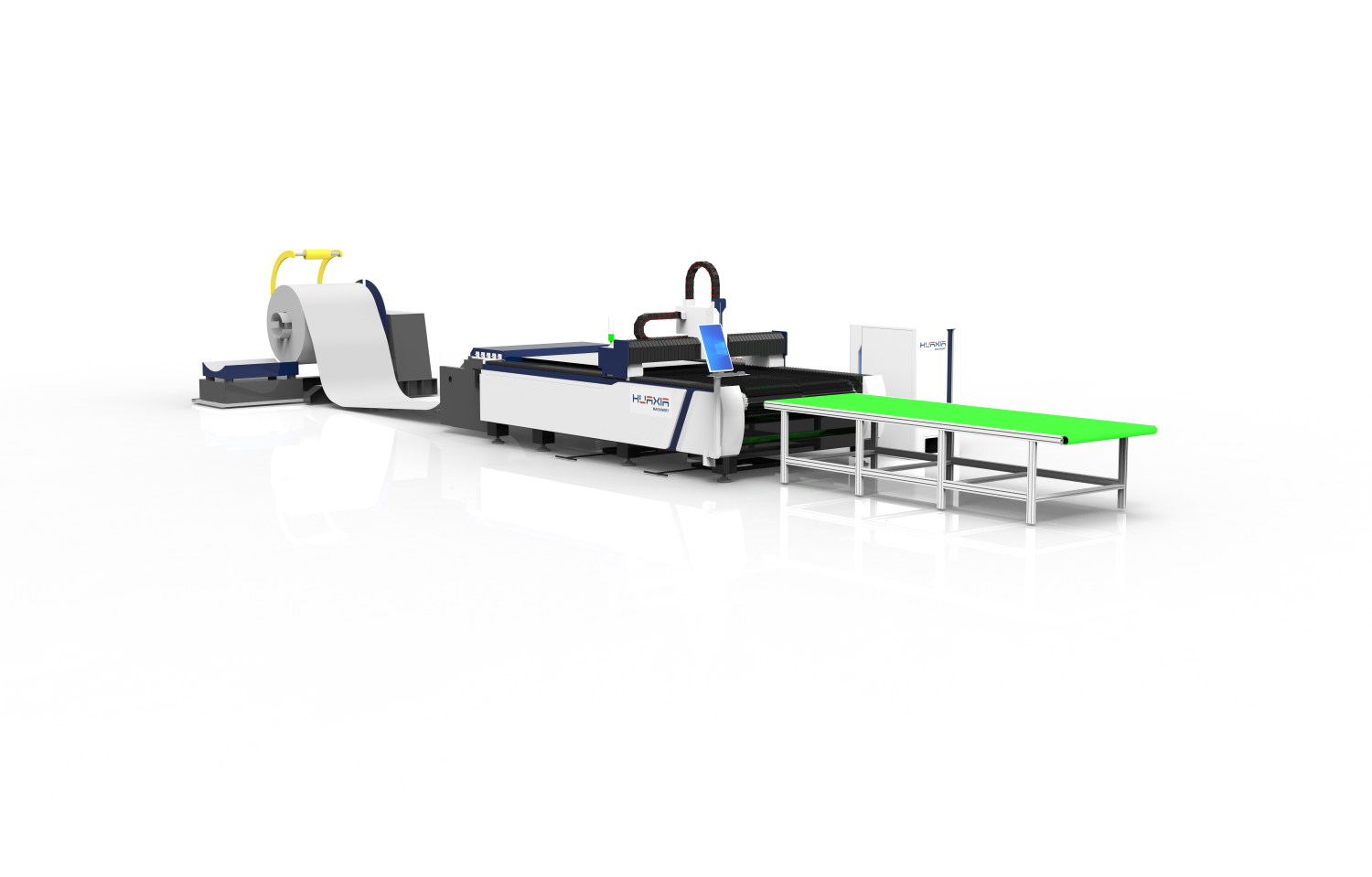

Product Name: Roll Material Laser Cutting Machine Production Line(A model) The coil laser cutting machine production line is specialized in the application of Coils racks, decoiler, automatic loading, cutting, automatic unloading achieving full process automation and continuous cutting production, saving time, materials, and labor. The innovative design of the unique hydraulic unwinding machine allows the weight of the coil material to reach 8T/10T/15T in a single feeding

Product Details:

Product Name: Roll Material Laser Cutting Machine Production Line(A model)

The coil laser cutting machine production line is specialized in the application of Coils racks, decoiler, automatic loading, cutting, automatic unloading achieving full process automation and continuous cutting production, saving time, materials, and labor. The innovative design of the unique hydraulic unwinding machine allows the weight of the coil material to reach 8T/10T/15T in a single feeding, breaking through the tonnage limitations of traditional feeding equipment in the past. After uncoiling the coil, it is leveled by a leveling machine to fully release the stress on the sheet, making it smoother and achieving better cutting. It can be used for batch processing of various types of coils, such as carbon steel coils, galvanized coils, and stainless steel coils.

model

HX-3015

HX-4015

HX-6015

HX-3020

HX-4020

HX-6020

Processing dimensions

3000*1500mm

4000*1500mm

6000*1500mm

3000*2000mm

4000*2000mm

6000*2000mm

Laser generator power

1500W/2000W/3000W/6000W

positioning accuracy

±0.05mm

repeatability

±0.02mm

Maximum movement speed

120m/min

*The above parameters are experimental data for reference only. For details, please contact relevant personnel for confirmation!
